Tasks

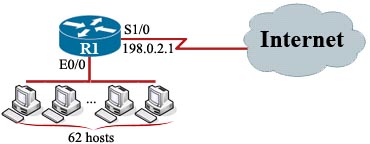

Refer to the exhibit. You are tasked to configure Internet access for the users in your company. Your ISP has given you six public IP addresses in the 45.9.1.65 45.9.1.70/29 range.
Your company has 62 clients that needs to have simultaneous internet access. They use private IP addresses in the 172.16.4.65 – 172.16.4.126/26 range.

Basic router configuration has been configured. Your tasks are:
+ Configure NAT on R1 so that all hosts can have Internet access at the same time
+ Configure appropriate interfaces for NAT translation

Please type configuration commands here:

1. Create a NAT pool of global addresses to be allocated with their netmask

(1)

2. Create a standard access control list that permits the addresses that are to be translated

(2)

3. Establish dynamic source translation, specifying the access list that was defined in the prior step

(3)

4. Configure NAT translation for appropriate interfaces:


(4)

(5)
