CCNA VTP SIM Question

February 21st, 2014 Go to comments

Question

Refer to the topology below, you are only allowed to access the CLI of Sw-AC3 to answer some questions. This does not require any configuration.

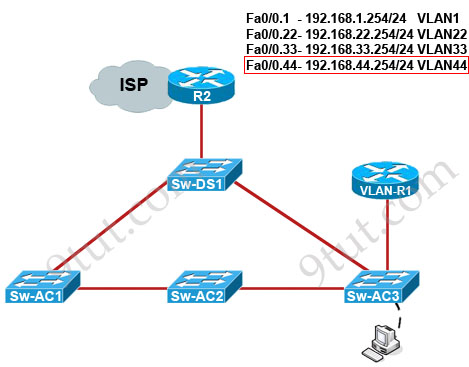

VTP_Lab_Sim_Topology

You can download this sim to practice here (but notice that this sim is not perfect, only for practicing purpose): http://www.9tut.com/download/9tut.com_CCNA_vtp_sim.pka

If you are not sure about VTP, please read my VTP Tutorial

Question 1

Explanation

To find out which interface associated with a given MAC address, use the show mac address-table command. It shows the learned MAC addresses and their associated interfaces. After entering this command, you will see a MAC address table like this:

ccna_vtp_sim_answer_1

From this table we can figure out that the MAC address 0010.5a0c.ffba is associated with interface Fa0/8.

Note: There are some reports that the “show mac-address-table” command does not exist. So if you cannot use the “show mac-address-table” command then try using the “show mac address-table” (without “-“) instead.

Question 2

Explanation

Use the show interface trunk command to determine the trunking status of a link and VLAN status. This command lists port, its mode, encapsulation and whether it is trunking. The image below shows how it works:

ccna_vtp_sim_answer_2

(This image is used for demonstration only)

Question 3

Explanation

VLAN-R1 is the router directly connected to Sw-Ac3 switch, so we can use the show cdp neighbors command to see:

1. Neighbor Device ID : The name of the neighbor device;

2. Local Interface : The interface to which this neighbor is heard

3. Capability: Capability of this neighboring device – R for router, S for switch, H for Host etc.

4. Platform: Which type of device the neighbor is

5. Port ID: The interface of the remote neighbor you receive CDP information

6. Holdtime: Decremental hold time in seconds

Sample output of show cdp neighbors command:

ccna_vtp_sim_answer_3_2

One thing I want to notice you is “Local Intrfce” in the image above refers to the local interface on the device you are running the “show cdp neighbors” command

Question 4

Explanation

First we use the show spanning-tree vlan 1 to view the spanning-tree information of VLAN 1

ccna_vtp_sim_answer_4

From the “Cost 19”, we learn that the root switch is directly connected to the Sw-Ac3 switch over a 100Mbps Ethernet link

Notice that if you see all of the interface roles are Desg (designated) then you can confirm Sw-Ac3 switch is the root bridge for this VLAN (VLAN 1).

If you see there is at least one Root port in the interface roles then you can confirm Sw-Ac3 is not the root bridge because root bridge does not have root port. In this case, we notice that the root port on Sw-Ac3 switch is FastEthernet0/12, so we have to figure out which switch is associated with this port -> it is the root bridge. You can verify it with the show cdp neighbors command:

ccna_vtp_sim_answer_4_2

The “Local Intrfce” column refers to the interface on the switch running “show cdp neighbors” command. In this case, Sw-DS1 is associated with interface FastEthernet0/12 -> Sw-DS1 is the root bridge

Question 5

Explanation

First we have to identify which VLAN interface Fa0/4 belongs to by the show vlan command

ccna_vtp_sim_answer_4_show_vlan

From the exhibit we know that VLAN 44 is configured on router using sub-interface Fa0/0.44 with IP address 192.168.44.254/24


Therefore the default gateway of the host should be 192.168.44.254

Question 6

Explanation

To view the VTP configuration information, use the show vtp status command

ccna_vtp_sim_answer_4_show_vtp_status

So we knew Sw-Ac3 received VLAN information from 163.5.8.3 (notice:the IP address may be different). Finally we use the show cdp neighbors detail to find out who 163.5.8.3 is:

ccna_vtp_sim_answer_4_show_cdp_neighbors_detail

Note: If in the exam you find that “Configuration last modified by 0.0.0.0” then “0.0.0.0” here indicates it does not receive VLAN information from anyone -> Sw-Ac3 is also the local updater. Therefore the answer in this case is Sw-Ac3.

Question 7

Answer and Explanation

First we should view the VTP configuration of switch Sw-Ac3 by using the show vtp status command on Sw-Ac3

ccna_vtp_sim_answer_7_new_switch_answer_2

Notice that its configuration revision number is 5 and VTP Domain Name is home-office

Next, from the exhibit we know that SwX has a revision number of 6, which is greater than that of Sw-Ac3 switch, and both of them have same VTP Domain Name called “home-office”.

ccna_vtp_sim_answer_7_new_switch_answer_1

Therefore SwX will replace vlan information on other switches with its own information. We should check vlan information of Sw-Ac3 switch with show vlan command

ccna_vtp_sim_answer_7_new_switch_answer_3

So the correct answer is D – The VLANs Servers, Management, Production and no-where will be removed from existing switches

Please notice that in the real CCNA exam you may see a different configuration revision of Sw-Ac3 or of SwX. In general, which switch has a higher revision number it will become the updater and other switches will overwrite their current databases with the new information received from the updater (provided that they are on the same domain and that switch is not in transparent mode). In particular, if the revision number of SwX is lower than that of Sw-Ac3, the answer should be “C – The VLANs Servers, Management, Production and no-where will replace the VLANs on SwX”.

Also, some recent comments have said that the new switch’s VTP Operating Mode is Server but the answer is still the same.

Note: If a switch is in client mode and has a higher Revision number, it can still update other Server switches (with lower Revision numbers).

Question 8

Explanation

First we check to see which ports the source mac-address and the destination mac-address belong to by using show mac address-table command

ccna_vtp_sim_answer_8_1

We notice that the source mac-address 0010.5a0c.fd86 is listed in the table and it belongs to Vlan 33 but we can’t find the destination mac-address 000a.8a47.e612 in this table. In this case, the switch will flood to all ports of Vlan 33 and flood to all the trunk links, except the port it received this frame (port Fa0/6). Therefore from the output above, we can figure out it will flood this frame to Fa0/1, Fa0/3 and Fa0/12.

Please notice that the “show mac-address-table” command just lists information that was learned by the switch, it means that there can be other ports besides Fa0/1, Fa0/3 and Fa0/12 belong to Vlan 33. You can use the show vlan command to see which ports belong to vlan 33

ccna_vtp_sim_answer_8_2

And we found other ports which belong to vlan 33, they are Fa0/2, Fa0/5 and Fa0/7. Our switch will flood the frame to these ports, too.

And we can check which trunk ports will receive this frame by the show interface trunk command

ccna_vtp_sim_answer_8_3

-> Port Fa0/9 will also receive this frame!

Note: Some reports said there is another version of this question. A reader on 9tut commented:

Another question on the VTP SIM was” What will be the destination MAC address of a packet with Source IP address 192.168.44.1 and destination IP address 192.0.2.X (doesn’t really matter what will be the Dest. IP address, since it will be sent to the router).
The answer is simple:
Since the source IP address belongs to VLAN 44, the default gw of the sender is the Router’s Subinterface 192.168.44.254, and this is where the packet will be sent. Thus, you need to perform a ‘show cdp nei’ on the Sw-AC3 in order to find the local FastEthernet port where the router is connected. Then execute a “show mac address-table” (this command was functioning) and find the mac address associated with the previous port. This is the answer.

Question 9

Answer and Explanation:

Because the destination address is not on the same subnet with the switch, it will forward the packet to its default gateway. So we have to find out who is the default gateway of this switch by using the show running-config command

ccna_vtp_sim_answer_9_1

From the output, we notice that its default-gateway is 192.168.1.254. In fact, we can easily guess that its default gateway should be a layer 3 device like a router; and in this case, the VLAN-R1 router. To verify our theory, use the show cdp neighbor detail command and focus on the description of VLAN-R1 router

ccna_vtp_sim_answer_9_2

From this output, we can confirm the switch’s default gateway is VLAN-R1 router (with the IP address of 192.168.1.254). And “the interface: FastEthernet0/3” tells us that the switch is connected to VLAN-R1 router through Fa0/3 port (Fa0/3 is the port on the switch).

Finally we just need to use the show mac-address-table command to find out which MAC address is associated with this interface

ccna_vtp_sim_answer_9_3

And we find out the corresponding MAC address is 000a.b7e9.8360. Although there are some entries of port Fa0/3 with different Vlans but they have the same MAC address
