NAT/PAT Questions

February 6th, 2017 Go to comments

Question 1

Question 2

Explanation

By adding the keyword “overload” at the end of a NAT statement, NAT becomes PAT (Port Address Translation). This is also a kind of dynamic NAT that maps multiple private IP addresses to a single public IP address (many-to-one) by using different ports. Static NAT and Dynamic NAT both require a one-to-one mapping from the inside local to the inside global address. By using PAT, you can have thousands of users connect to the Internet using only one real global IP address. PAT is the technology that helps us not run out of public IP address on the Internet. This is the most popular type of NAT.

Question 3

Explanation

NAT use four types of addresses:

* Inside local address – The IP address assigned to a host on the inside network. The address is usually not an IP address assigned by the Internet Network Information Center (InterNIC) or service provider. This address is likely to be an RFC 1918 private address.
* Inside global address – A legitimate IP address assigned by the InterNIC or service provider that represents one or more inside local IP addresses to the outside world.
* Outside local address – The IP address of an outside host as it is known to the hosts on the inside network.
* Outside global address – The IP address assigned to a host on the outside network. The owner of the host assigns this address.


Question 4

Question 5

Explanation

NAT use four types of addresses:

* Inside local address – The IP address assigned to a host on the inside network. The address is usually not an IP address assigned by the Internet Network Information Center (InterNIC) or service provider. This address is likely to be an RFC 1918 private address.
* Inside global address – A legitimate IP address assigned by the InterNIC or service provider that represents one or more inside local IP addresses to the outside world -> This is the public IP address of a NAT device.
* Outside local address – The IP address of an outside host as it is known to the hosts on the inside network.
* Outside global address – The IP address assigned to a host on the outside network. The owner of the host assigns this address.


Question 6

Explanation

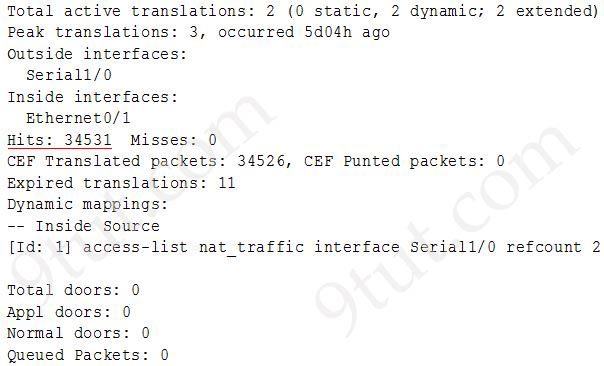

An example of the output of the “show ip nat statistics” is shown below. As we can see, the “Hits” counter is displayed.


Question 7

Explanation

By adding the keyword “overload” at the end of a NAT statement, NAT becomes PAT (Port Address Translation). This is also a kind of dynamic NAT that maps multiple private IP addresses to a single public IP address (many-to-one) by using different ports.

Question 8

Explanation

In NAT configuration we should specify the inside and outside interfaces first with the command “ip nat inside” and “ip nat outside” under interface mode.

Question 9

Question 10

Explanation

When we specify a NAT “inside” interface (via the “ip nat inside” command under interface mode), we are specifying the source IP addresses. Later in the “ip nat” command under global configuration mode, we will specify the access or route map for these source addresses.

For example the command:

Router(config)# ip nat inside source list 1 pool PoolforNAT

after the keyword “source” we need to specify one of the three keywords:

+ list: specify access list describing local addresses (but this command does not require an “inside” interface to be configured)
+ route-map: specify route-map
+ static: specify static local -> global mapping

Question 11

Explanation

There are two types of NAT translation: dynamic and static.

Static NAT: Designed to allow one-to-one mapping between local and global addresses. This flavor requires you to have one real Internet IP address for every host on your network

Dynamic NAT: Designed to map an unregistered IP address to a registered IP address from a pool of registered IP addresses. You don’t have to statically configure your router to map an inside to an outside address as in static NAT, but you do have to have enough real IP addresses for everyone who wants to send packets through the Internet. With dynamic NAT, you can configure the NAT router with more IP addresses in the inside local address list than in the inside global address pool. When being defined in the inside global address pool, the router allocates registered public IP addresses from the pool until all are allocated. If all the public IP addresses are already allocated, the router discards the packet that requires a public IP address.

In this question we only want to translate a single inside address to a single outside address so static NAT should be used.

Question 12

Explanation

By not reveal the internal IP addresses, NAT adds some security to the inside network -> A is correct.

NAT has to modify the source IP addresses in the packets -> B is not correct.

Connection from the outside to a network through “NAT” is more difficult than a normal network because IP addresses of inside hosts are hidden -> C is not correct.

In order for IPsec to work with NAT we need to allow additional protocols, including Internet Key Exchange (IKE), Encapsulating Security Payload (ESP) and Authentication Header (AH) -> more complex -> D is not correct.

By allocating specific public IP addresses to inside hosts, NAT eliminates the need to re-address the inside hosts -> E is correct.

NAT does conserve addresses but not through host MAC-level multiplexing. It conserves addresses by allowing many private IP addresses to use the same public IP address to go to the Internet -> F is not correct.
